pKOV基因敲除載體自殺質粒

BioVector NTCC質粒載體菌種細胞基因保藏中心

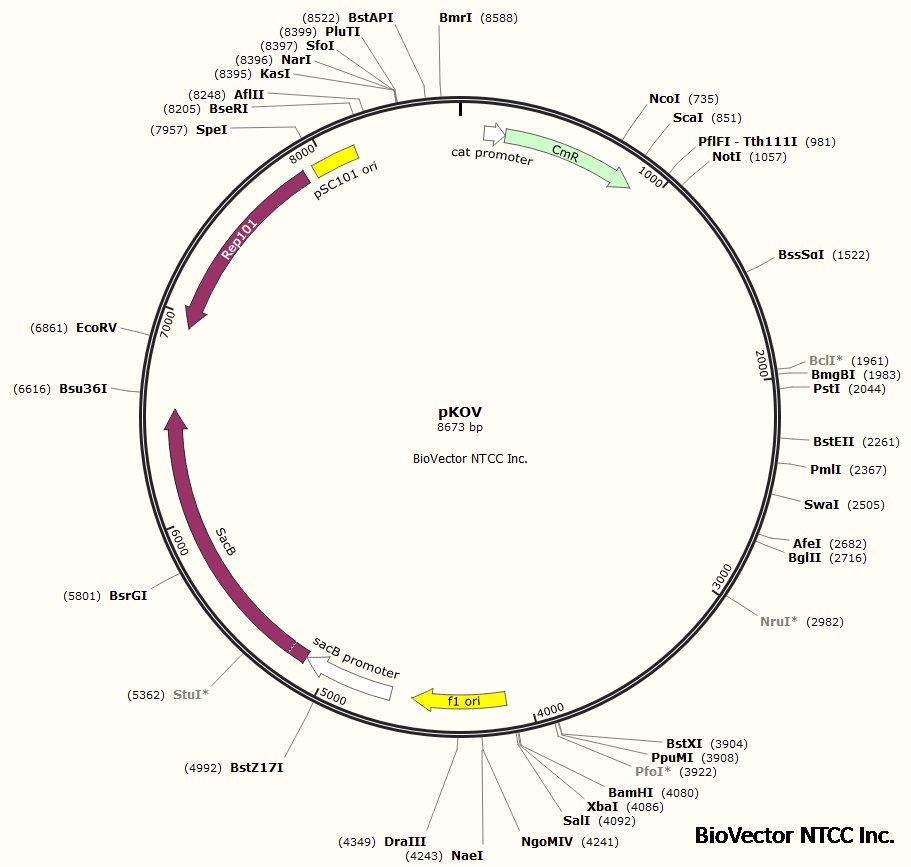

pKOV is identical to the pKO3 vector described in J. Bacteriology 179: 6228-6237, except for the addition of a 3kb stuffer sequence in the multiple cloning site. This stuffer permits (i) directional cloning using NotI and BamHI and (ii) clean separation of doubly cut vector from singly cut contaminants when using this pair of enzymes. The pKOV cloning site is: 5' - SmaI - NotI - SmaI- stuffer - BamHI - SalI - 3'. BamHI and SalI are not used together, nor is SmaI used with NotI. BglII & BclI cut ends are compatible with BamHI. PmeI & SwaI are compatible with SmaI.

NOTE: pKOV has a temperature sensitive pSC101 replication origin. To recover the plasmid, strains harboring the plasmid must be grown at 30 deg C under chloramphenicol selection.

Gene replacement: Mutant alleles cloned into the pKOV gene replacement vector are electroporated into recombination proficient strains (eg. EMG2) and allowed to recover for 1 h at 30 deg C. The cells are plated on prewarmed chloramphenicol/LB plates and incubated at 42 deg C. To measure the integration frequency, the electroporated cells are also plated on chloramphenicol/LB plates at 30 deg C. From the 42 deg C plate, 1-5 colonies are picked into 1 ml of LB broth, serially diluted, and immediately plated at 30°ree;C on either 5% w/v sucrose or 5% sucrose+antibiotic plates. The 5% sucrose plates are replica plated to chloramphenicol plates at 30 deg C to test for loss of the replacement vector (cms). The gene replacement is confirmed by either PCR using primers flanking the targeted open reading frame or by genomic Southern's.

Note from depositor: If sucrose plates do not select correctly, pKOV should be used in liquid selection on a plate reader with a LB + Cm control growth and a LB + Cm + sucrose growth. pKOV can sometimes still allow survival in the presence of sucrose, but significantly decreases fitness, so tracking the kinetic growth can be helpful.
The sacB gene loses its efficacy,, sacB is toxic in E. coli even in the absence of sucrose.
Vector backbone pMAK700, pMAK705, pBS-TS
(Search Vector Database)
Backbone manufacturer N/A
Backbone size (bp) 8673
Vector type Bacterial Expression
GROWTH IN BACTERIA

Bacterial Resistance(s) Chloramphenicol
Growth Temperature 30°C
Growth Strain(s) Top10
Growth instructions Grow at 30 degrees Celsius
Copy number Unknown
GENE/INSERT

Gene/Insert name None
Alt name pKOV gene replacement vector
Alt name pKO5
CLONING INFORMATION

Cloning method Restriction Enzyme
5′ sequencing primer pK03-L: 5'-AGGGCAGGGTCGTTAAATAGC-3'
3′ sequencing primer pK03-R: 5'-TTAATGCGCCGCTACAGGGCG-3'
