BioVector? pAG-TN5 plasmid CUTANA CUT&Tag vector靶向剪切和轉座酶錨定標記技術質粒載體-用于蛋白質-DNA互作關系研究

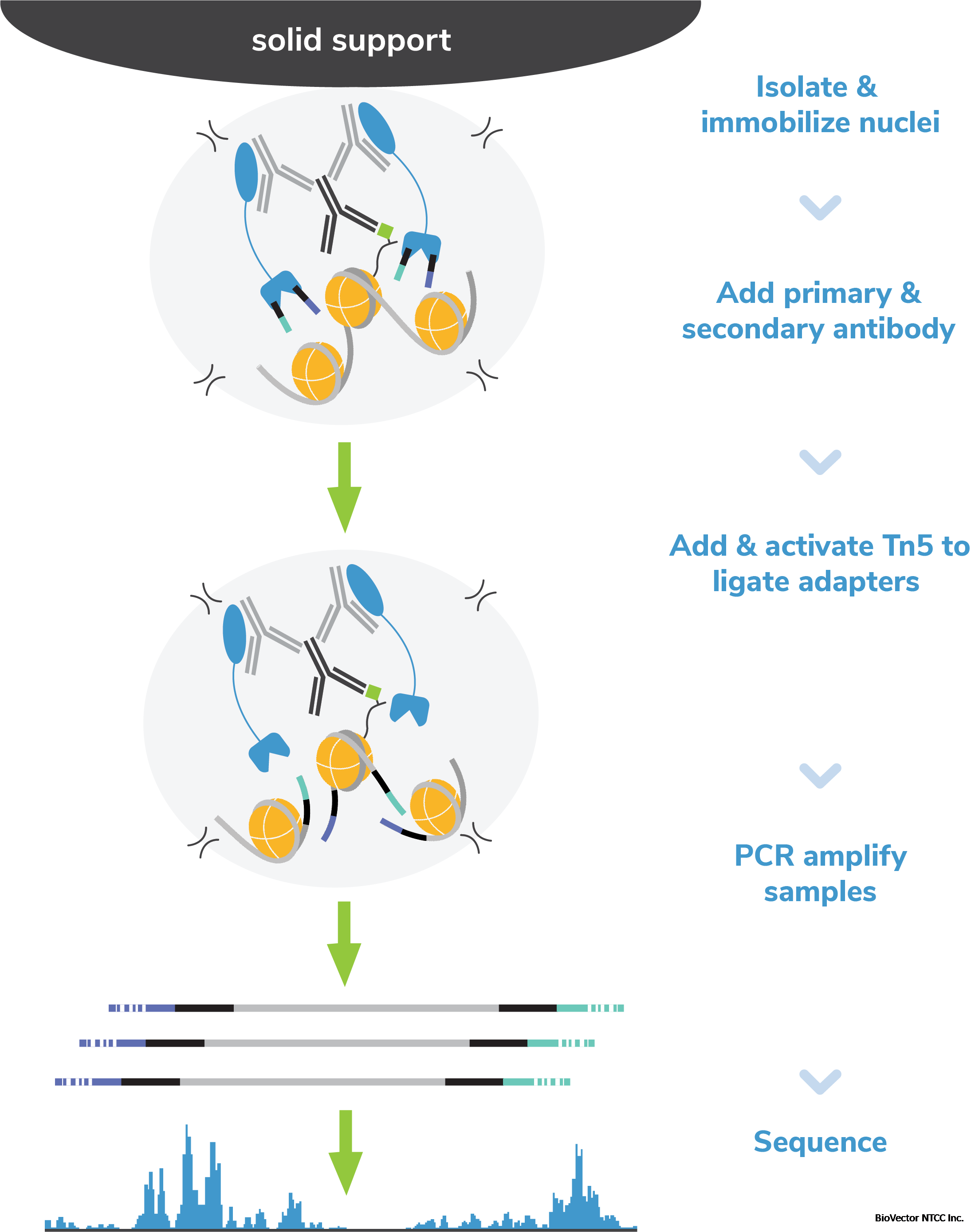

BioVector? CUTANA pAG-Tn5 is the key reagent for performing efficient mapping of chromatin features in Cleavage Under Targets and Tagmentation (CUT&Tag) [Kaya-Okur et al., 2019]. CUT&Tag offers significant improvements in signal to noise at reduced cell inputs and sequencing depth compared to ChIP-seq. As a fusion of Proteins A and G to a highly active E. coli transposase mutant (Tn5), CUTANA pAG-Tn5 is compatible with target antibodies from a broad spectrum of host species. It also comes without an epitope tag, making it suitable for tag-mediated CUT&Tag (e.g. FLAG, HA, TY1, V5, etc.). This product is highly purified to remove contaminating E. coli DNA, which can be tagmented during storage and complicate analysis at low cell numbers. For superior normalization as well as antibody validation and reaction monitoring, SNAP-CUTANA? nucleosome spike-ins are recommended. The Tn5 comes charged with mosaic adapters and is ready to be used in CUT&Tag.

Technical Information

Storage

Stable for one year at -20°C from date of receipt. The protein is not subject to freeze/thaw under these conditions.

Formulation

50 mM HEPES-KOH pH 7.2, 100 mM NaCl, 0.1 mM EDTA, 1 mM DTT, 0.1% Triton X-100, 50% glycerol

Adapters

Tn5ME-A: 5’-TCGTCGGCAGCGTCAGATGTGTATAAGAGACAG-3’

Tn5ME-B: 5’-GTCTCGTGGGCTCGGAGATGTGTATAAGAGACAG-3’

Tn5ME-rev: 5’-[phos]CTGTCTCTTATACACATCT-3’

Application Notes

Add 2.5 μL of the supplied enzyme to a 50 μL CUT&Tag reaction (20X dilution). For detailed applications and uses of this product, please see our CUT&Tag protocol.

Intellectual Property

US Pat. No. 10,689,643, 11,306,307, EU Pat. No. 3,688,157, 2,999,784 and related patents and pending applications
